Hardware Specification
The RAC18-IP is equipped with:
18 inputs and outputs;
2 Ethernet fail-safe protected ports;
RS485 interface (RJ45 and screwless connectors).

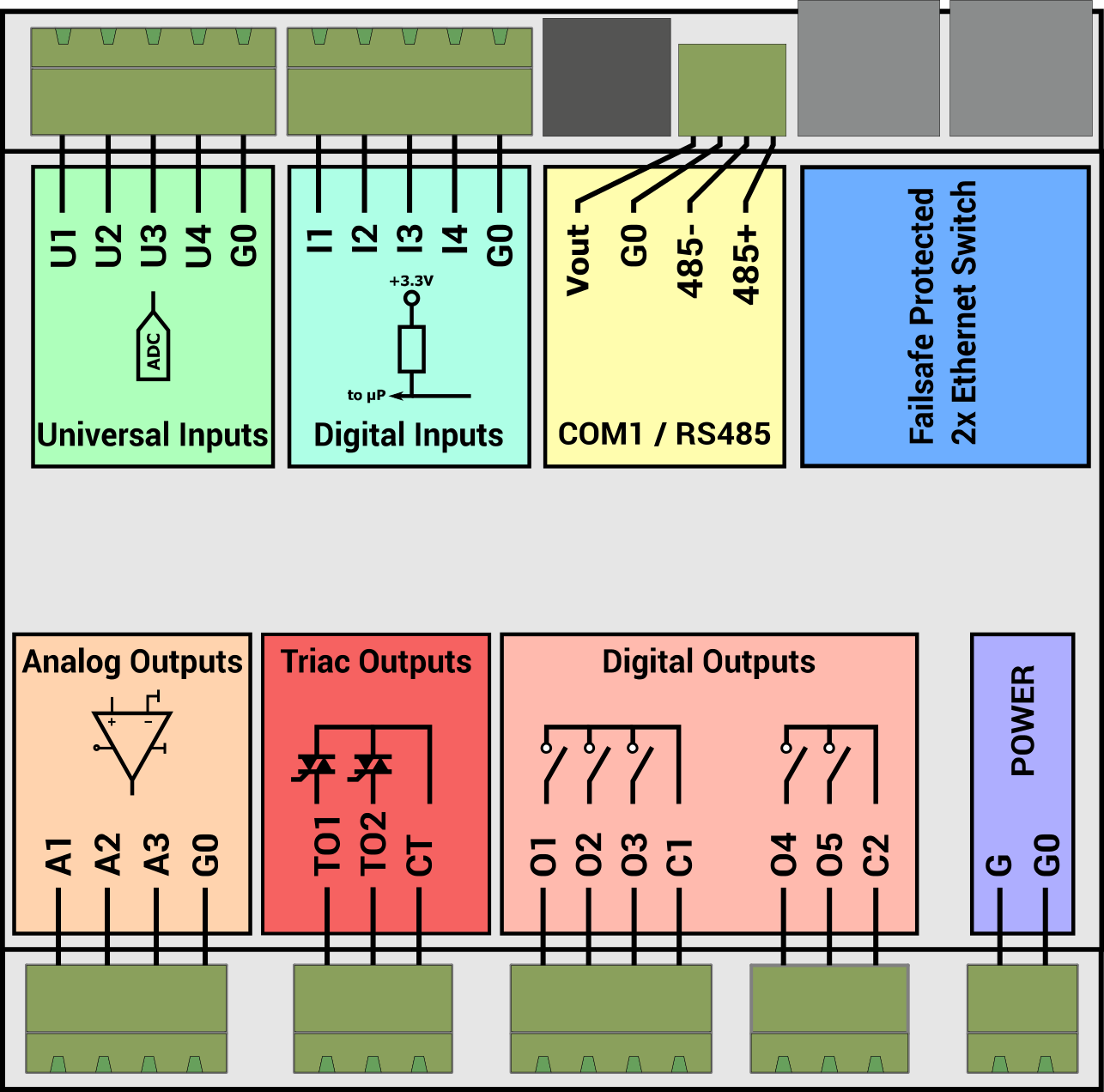

Block diagram
Dimensions

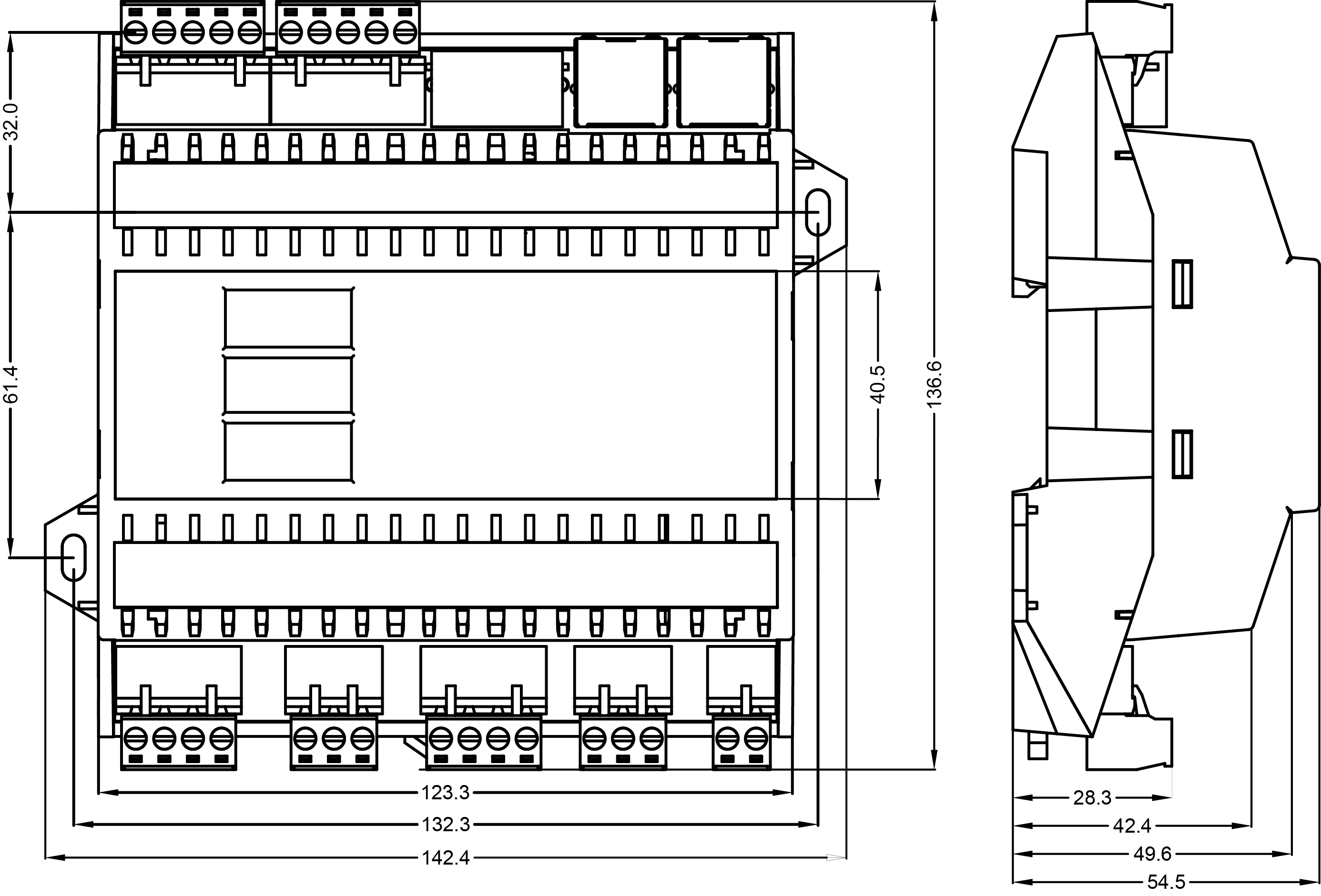

RAC18-IP dimensions
Power Supply
The RAC18-IP device requires 24 V AC/DC power supply.
Power supply
