Sequence

The Sequence component calculates a binary output value based on the input value, the corresponding threshold value, and a universal hysteresis value:

• if the input value is greater than or equal to the threshold plus hysteresis, the output is set to true.

• if the input value is less than or equal to the threshold minus hysteresis, the output is set to false.

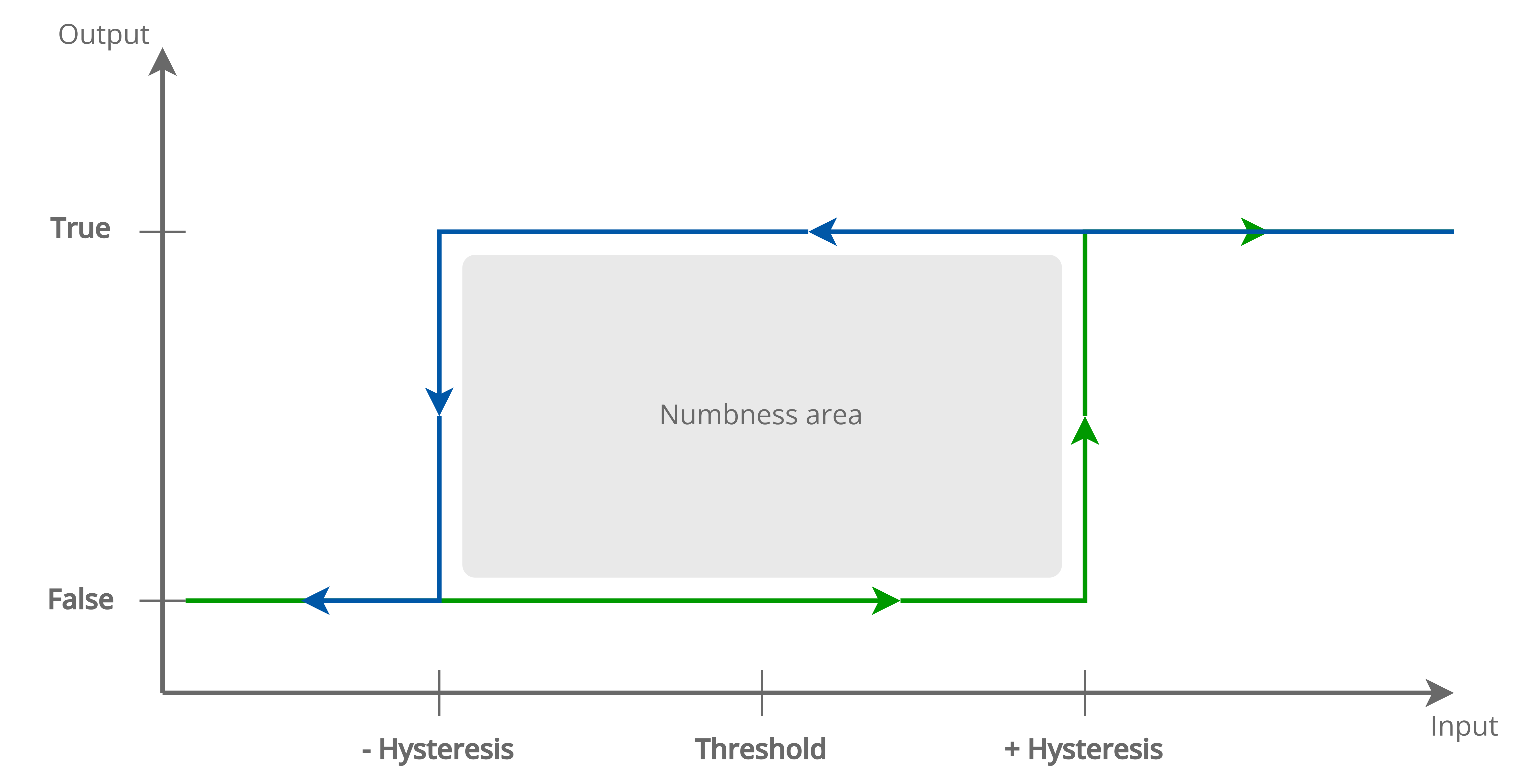

The component uses a hysteresis mechanism to prevent rapid switching of outputs when the input value is close to the threshold.

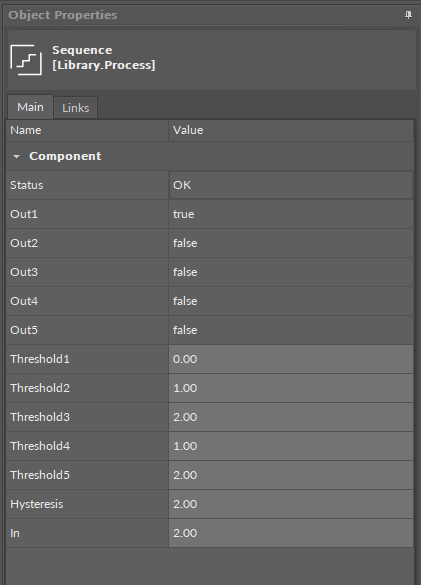

The Sequence component has the following slots:

• Status: indicates the current status of the component;

  • Available information: OK, fault;

• Out1-5: a binary output value based on the threshold and hysteresis values;

• Threshold1-5: allows to set a threshold value for outputs 1-5;

• Hysteresis: allows to set a hysteresis value for outputs 1-5;

• In: the input value.
