Pulser

The Pulser component generates pulses based on a pulse time and pause time parameters.

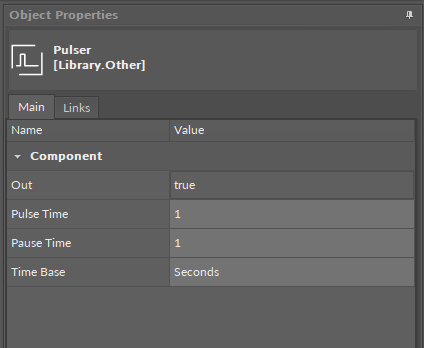

The Pulser component has the following slots:

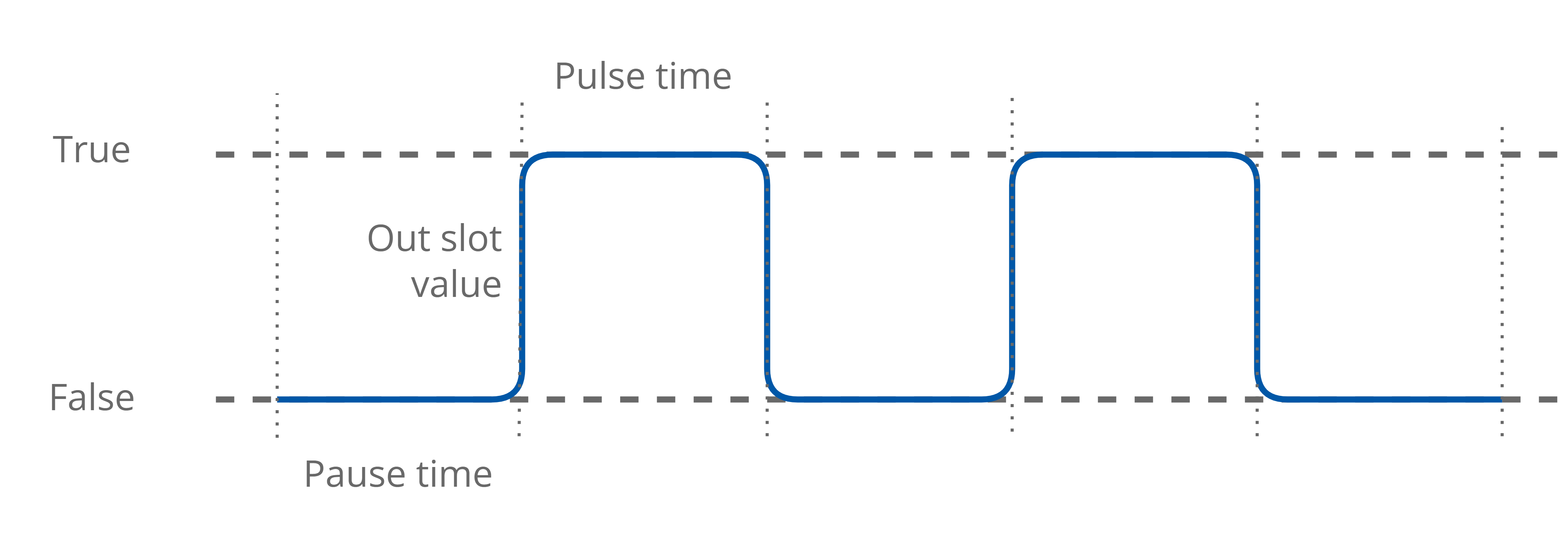

• Out: a binary value changing based on the Pulse Time and Pause Time values; the default initial value is false;

• Pulse Time: allows to set a time value during which the value of the Out slot is true;

• Pause Time: allows to set a time value during which the value of the Out slot is false;

• Time Base: allows to set a time unit for the pulse time and pause time values;

  • Available settings: milliseconds, seconds, minutes, hours.
