StringAdd

The StringAdd component takes string values from the In1-In4 slots, joins them, and transfers to the Out slot.

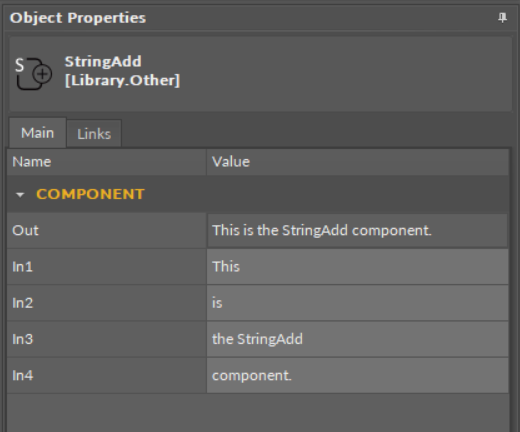

The StringAdd component

The StringAdd component has the following slots:

• In1-In4: input values;

Note: The In1-In4 require string values. In case the value is transferred to these slots by a link, it has to be a string too. If the source value is not a string, a switching component is required (BinaryStringSwitch, Analog2String).

• Out: the output value of joined input values.

Note: The Out slot shows input values with no additional spaces between In1, In2, In3, and In4 values.
