Or


Applicable to OS V1.0-1.4

The Or component performs a logical disjunction—the Out slot value is true if and only if at least one of the input values is true; only in case all the active In slots are false, the Out value is false.

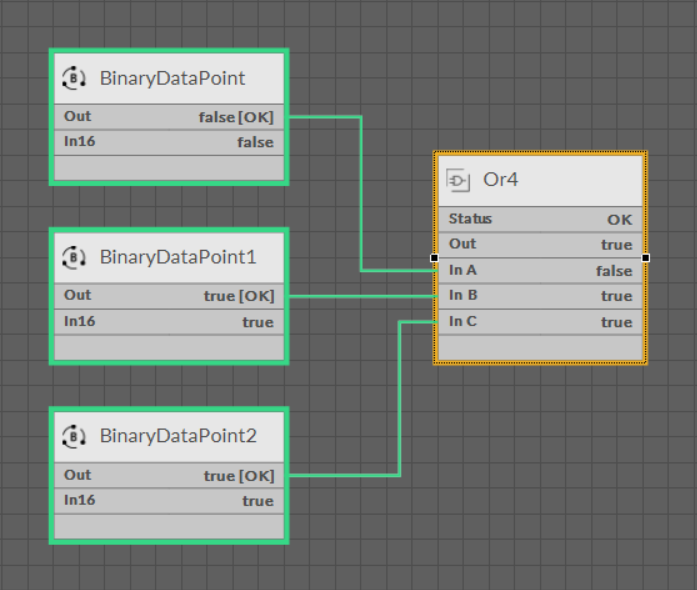

The Or component

The Or component has the following slots:

  • Status: indicates the current status of the component (OK, Fault);
  • Out: the logical disjunction of values of the In slots;
  • InA⁠-InN: 10 or 4 input slots (depending on the component's variant).

The Or component comes in two variants—with 10 or 4 In slots. The 4 slots variant uses less memory within application.

  • Or10: component with 10 In slots.
  • Or4: component with 4 In slots.
