Nor

The Nor component performs a joint denial (a reversed disjunction)—the Out slot value is true if and only if all active input values are false; in case any of the In slots is true, the Out value is false.

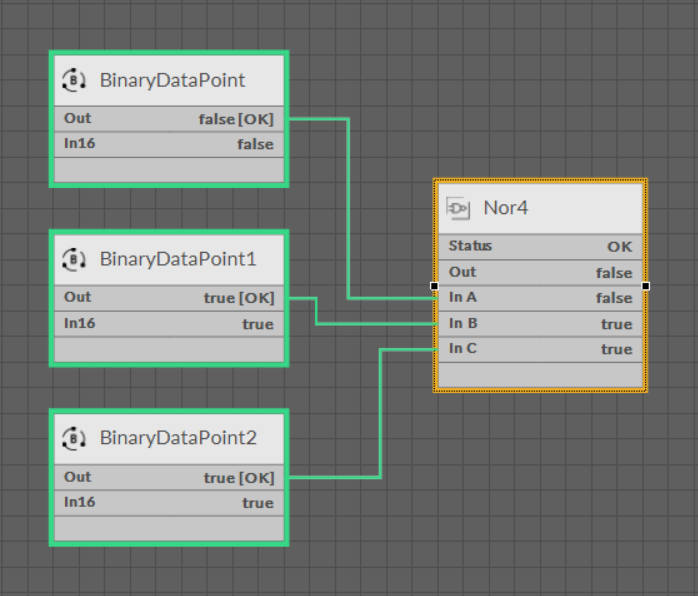

The Nor component

Slots

The Nor component has the following slots:

• Status: indicates the current status of the component (OK, Fault);
• Out: the joint denial of values of the In slots;
• InA⁠-InN: 10 or 4 input slots (depending on the component's variant).

Variants

The Nor component comes in two variants—with 10 or 4 In slots. The 4 slots variant uses less memory within application.

• Nor10: component with 10 In slots;
• Nor4: component with 4 In slots.
