The Add component returns the sum of values of the In slots.

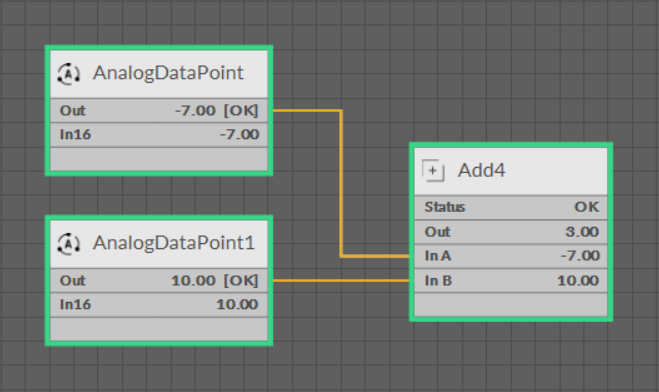

The Add component


The Add component as the following slots:

  • Status: indicates the current status of the component (OK, Fault);
  • Out: the sum of values of the In slots;
  • InA⁠-InJ: input slots (depending on the component's variant).


The Add component comes in two variants—with 10 or 4 In slots. The 4 slots variant uses less memory within application.

  • Add10: component with 10 In slots;
  • Add4: component with 4 In slots.
