iSMA-B-MAC36NL User Manual

Introduction

iSMA-B-MAC36NL is a compact Master Application Controller with built-in different types of I/O and operating in the Niagara Framework environment. Using the specific local I/O set of 16 UI, 8 AO, 4 DI, and 8 DO allows to use the device in different applications. The controller provides control, data logging, alarming, scheduling, integration, and visualization.

To allow the IP connectivity there are 2 Fast Ethernet ports, which operate independently. Built-in 1 RS485 can be used to expand the number of I/O by connecting MINI or MIX series I/O modules or to integrate with other subsystems.

Dedicated microSD card stores real-time data, history logs, and alarms as well as the operating system, Niagara Framework, and licenses.

There are 2 USB ports, one of them operates as a host port and the other one in the OTG mode.

Revision History

Rev.

Date

Description

1.9

9 Feb 2023

  • Support of Niagara 4.12

  • Updated M-Bus information

1.8

25 May 2022

Rebranded

1.7

24 Jun 2021

Document updated with support of the Niagara 4.10 information

1.6

16 Dec 2020

  • Document updated with support of the Niagara 4.9 information

  • Chapter 3.11.4 updated with the web service configuration for HDMI support

1.5

27 Apr 2020

Controller system update–Chapter 3.7

1.4

31 Mar 2020

  • Support of Niagara 4.8

  • Change of passphrase saving destination

  • User fonts support

  • Pop-up control for the HDMI display

  • Auto-detection of the device extension

  • Log saving to the Niagara home directory

  • M-Bus support

1.3

31 Oct 2019

Updated universal input supported sensors list

1.2

1 Apr 2019

  • HDMI support

  • Restore to factory defaults

1.1

10 Dec 2018

  • Data Recovery Service

  • Support of the Niagara 4.6 and later

1.0

1 Oct 2018

First edition

Revision history

Key Features

  • Niagara 4.8 and later;
  • real-time programming;
  • 2 Fast Ethernet (independent);
  • 1 RS485 (opto-isolated), optional extension as second RS485 port;
  • optional M-Bus extension;
  • 2 USB (1 OTG, 1 Host);
  • 16 UI, 8 AO, 4 DI, and 8 DO;
  • HDMI to connect an external display;
  • built-in web server provides graphical user interface available from the web browser level;
  • SD card to collect real-time data, history logs, and alarms;
  • hardware replacement by SD card;
  • different licensing models for various application types.

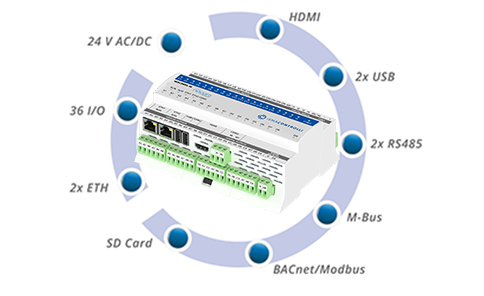

Key features of the iSMA-B-MAC36NL controller
