Analog Outputs

All analog outputs have 12-bit ADC, provide 10 mV resolution, and accuracy less than ±0,5%. They support the following types of output signals:

• voltage output (0-10 V DC) with max. load up to 20 mA;
• PWM: 0,01 Hz, 0,1 Hz, 1 Hz, 10 Hz, 100 Hz.

Voltage Output Connection (0-10 V DC)

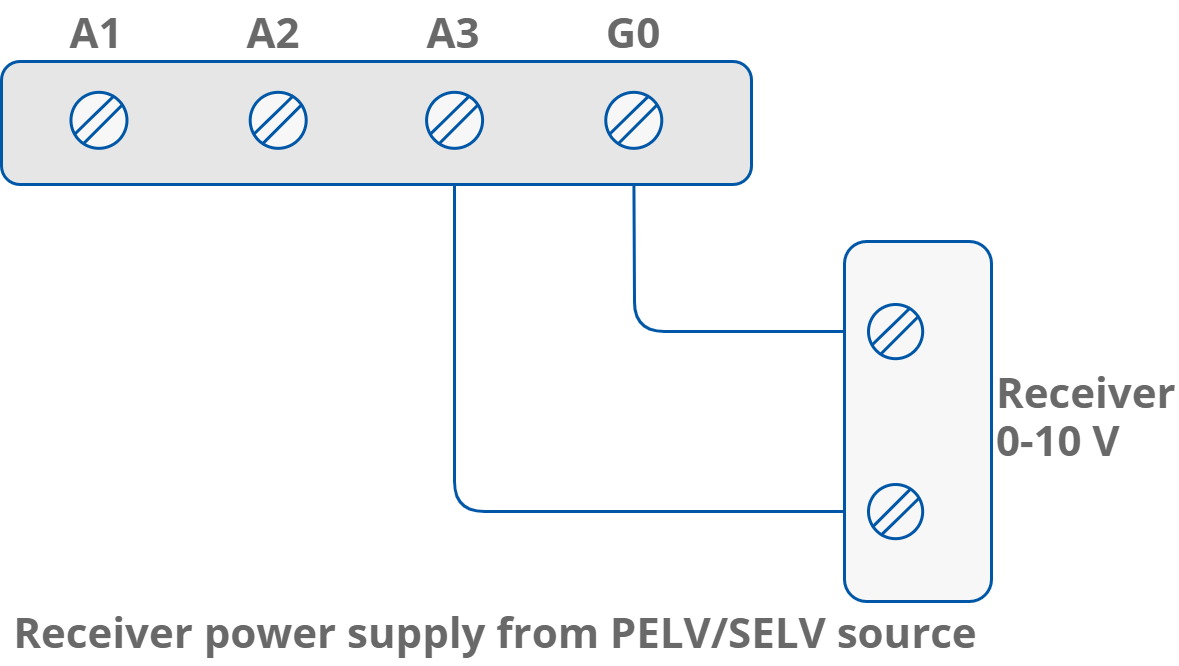

Analog output voltage connection

Relay to Analog Output Connection

There is an option to control the 12 V DC relay from the analog outputs (max. load cannot exceed 20 mA!).

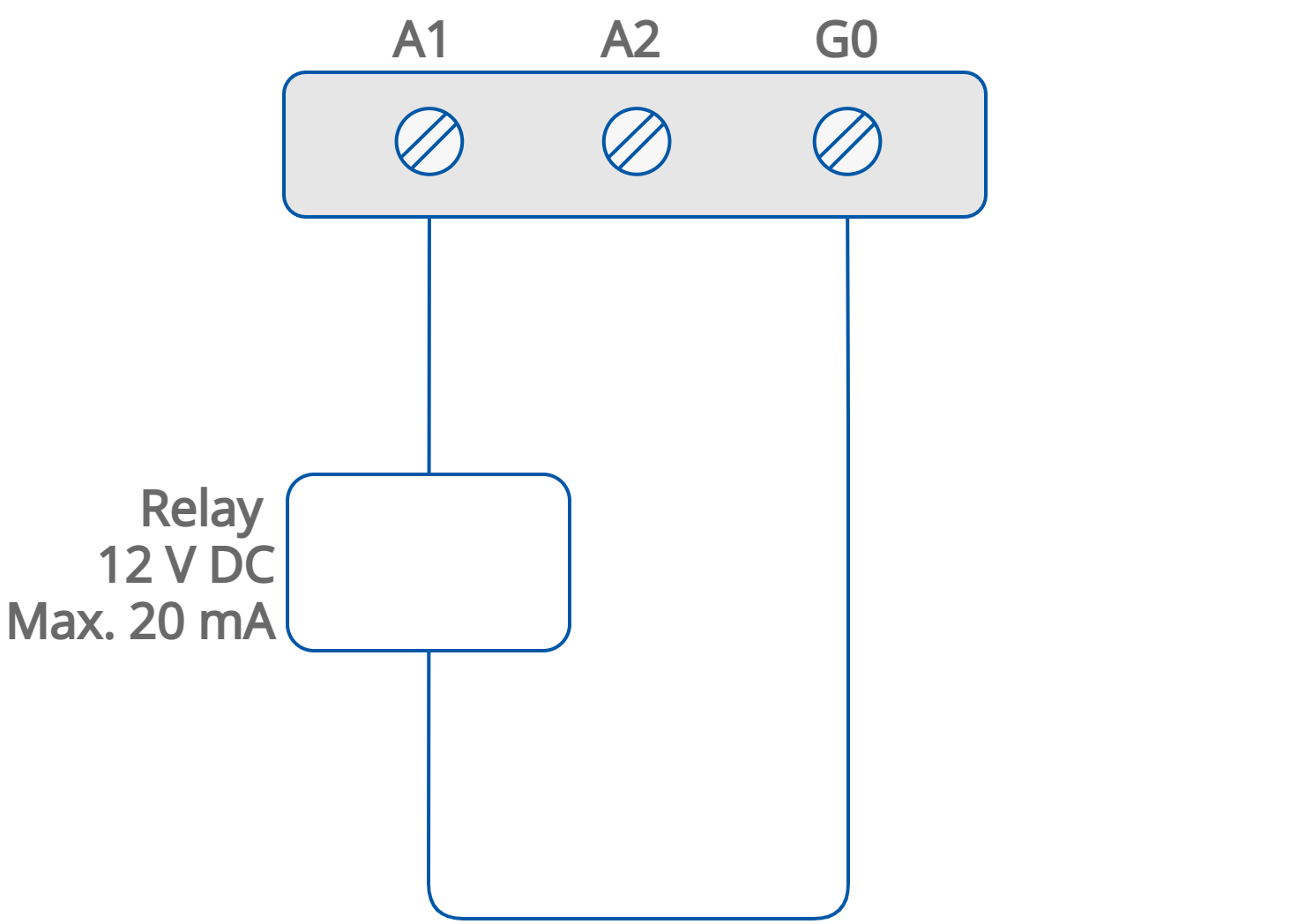

The analog output relay connection
