iSMA-B-LP Modbus User Manual



Introduction

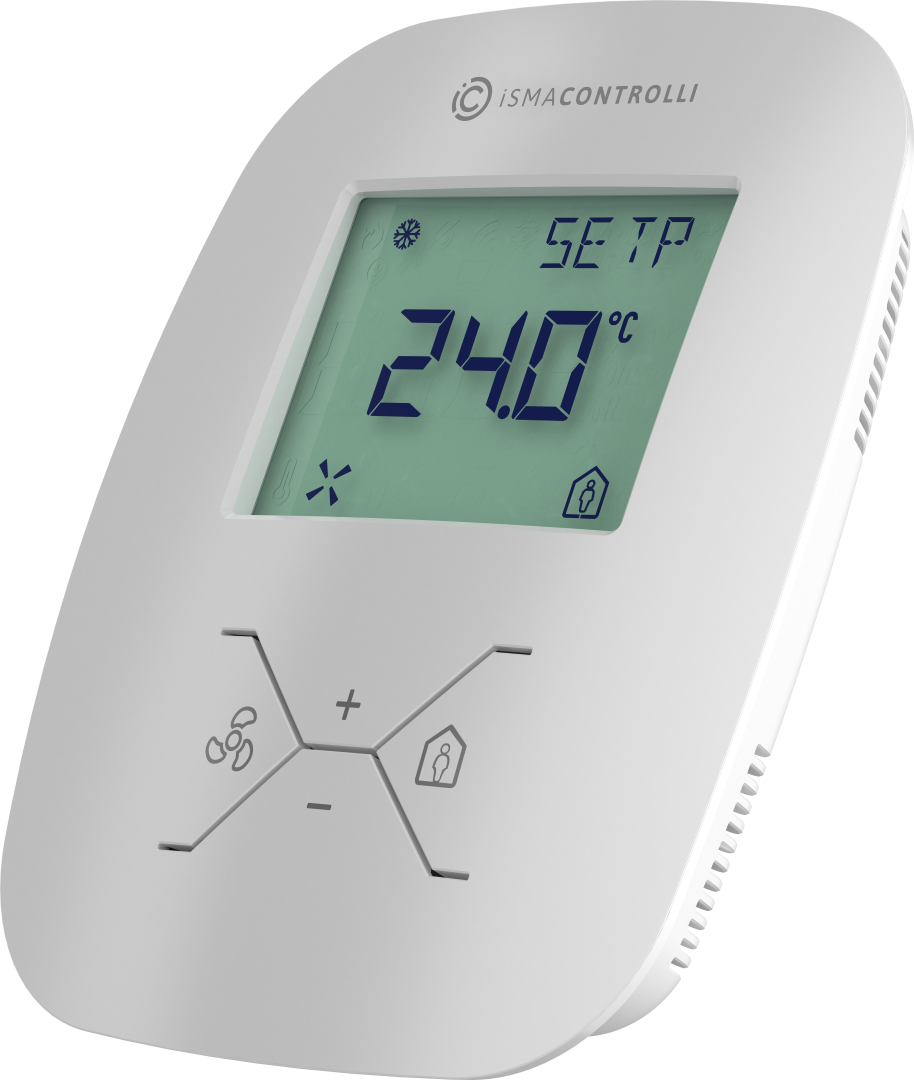

The iSMA-B-LP is a wall panel with 2.3” LCD display and four function buttons. Additionally, the panel has a built-in temperature sensor and, optionally, humidity and CO2 sensors.

The iSMA-B-LP is powered with 24 V AC/DC and has a built-in RS485 port (Modbus RTU/ASCII and BACnet MS/TP). The use of open communication protocol allows to connect the panel with any controller, which supports Modbus RTU/ASCII or BACnet MS/TP. Connected to the iSMA controllers, the panel allows to change the basic parameters such as: temperature setpoint, fan speed, FCU mode, and other. Thanks to a built-in USB port, there is a possibility of updating firmware and configurating the panel without the need of power supply. The iSMA-B-LP has modern design and is available in different colors (white is basic), on client’s request.

This user manual outlines Modbus registers available in the iSMA-B-LP room panel and describes their configuration.




LP panels

Revision History

Rev.

Date

Description

1.0

28 Aug 2016

First edition

1.1

21 Feb 2017

New function:

  • Added SubmenuIconDisplayOFF bit in DeviceConfiguration register to disable displaying of Submenu Icons;

Changes in Document:

  • Added SubmenuIconDisplayOFF bit description in DeviceConfiguration section

  • Added description of Submenu Boolean All present Value registers

1.2

6 Jun 2017

Added information about BACnet MS/TP protocol

1.3

16 Nov 2017

Added new version of the Panel (iSMA-B-LP(-XX)-1)

1.4

25 May 2022

Rebranded

Revision history

This user manual outlines Modbus registers available in the iSMA-B-LP room panel and describes their configuration.
