Device Configuration

There are two ways to configure devices in the iSMA Configurator: in the online and offline mode. If a device is discovered, double click it and choose one of the above mentioned methods.

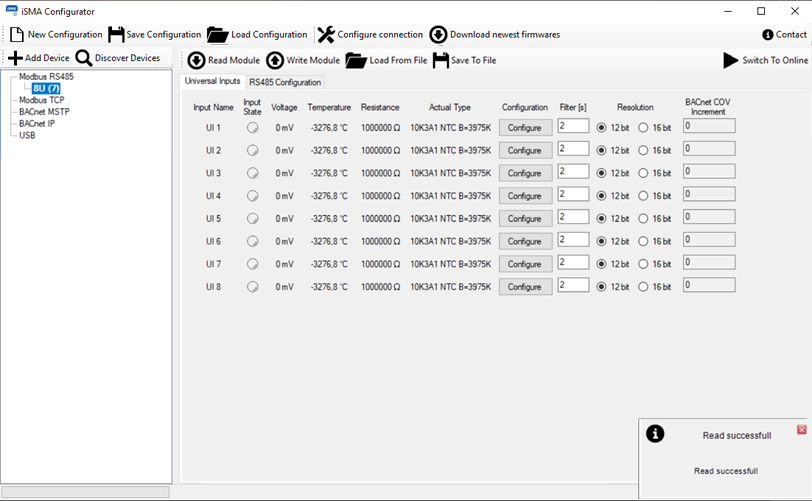

In case of the offline mode, it is crucial to click Read Module in order to learn what are the configurations of the chosen module at this moment. Successful Read operation is confirmed by a pop-up window with a Read successful message. After that, the user can make all changes and send them to the controller by clicking the Write Module button. Successful Write operation is confirmed with pop-up window with a Write successful message.

Online configuration

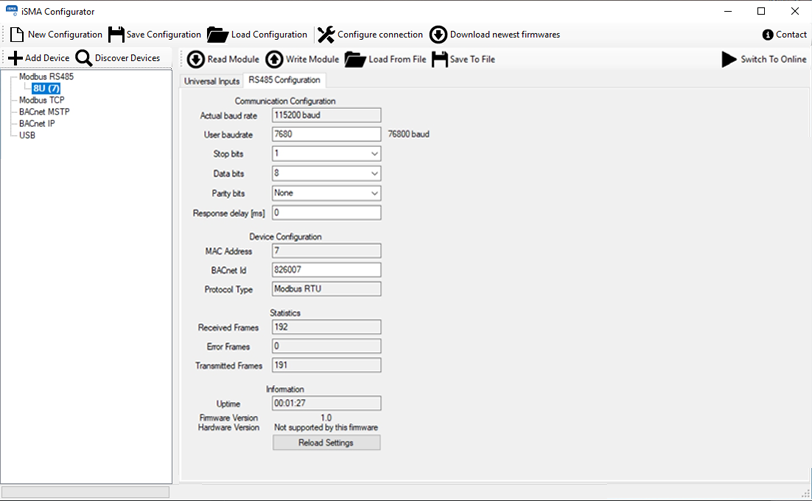

In order to configure the module in the online mode, click the Switch to Online button. In this mode, each change in configuration is immediately sent to the controller. The Read module and Write module options are not available in this mode.

Online configuration
