iSMA-B-FCU Quick Start-up User Manual


This manual explains basic procedures for using the controller, setting up the built-in application and information on connection details. It is recommended to read this manual before using the controller. For detailed operating procedures and troubleshooting information, see user manuals: FCU Programming, FCU Application, FCU Hardware, FCU Updater.

Revision History




1.221 Feb 2023
  • Updated information about the default settings (values stored in the EEPROM memory cleared while restoring to default settings)
  • Updated FP panel references
1.121 Apr 2022
  • Rebranded
  • Updated Touch Point panel references


5 Mar 2021

First edition

Revision history


Box Contents

The iSMA-B-FCU controller comes in a box along with the connectors and the iSMA-B-FCU installation instruction.


To safely and properly set up the iSMA-B-FCU controller, the flat head screwdriver 3.0 x 0.5 mm is necessary.

Dimensions and Mounting

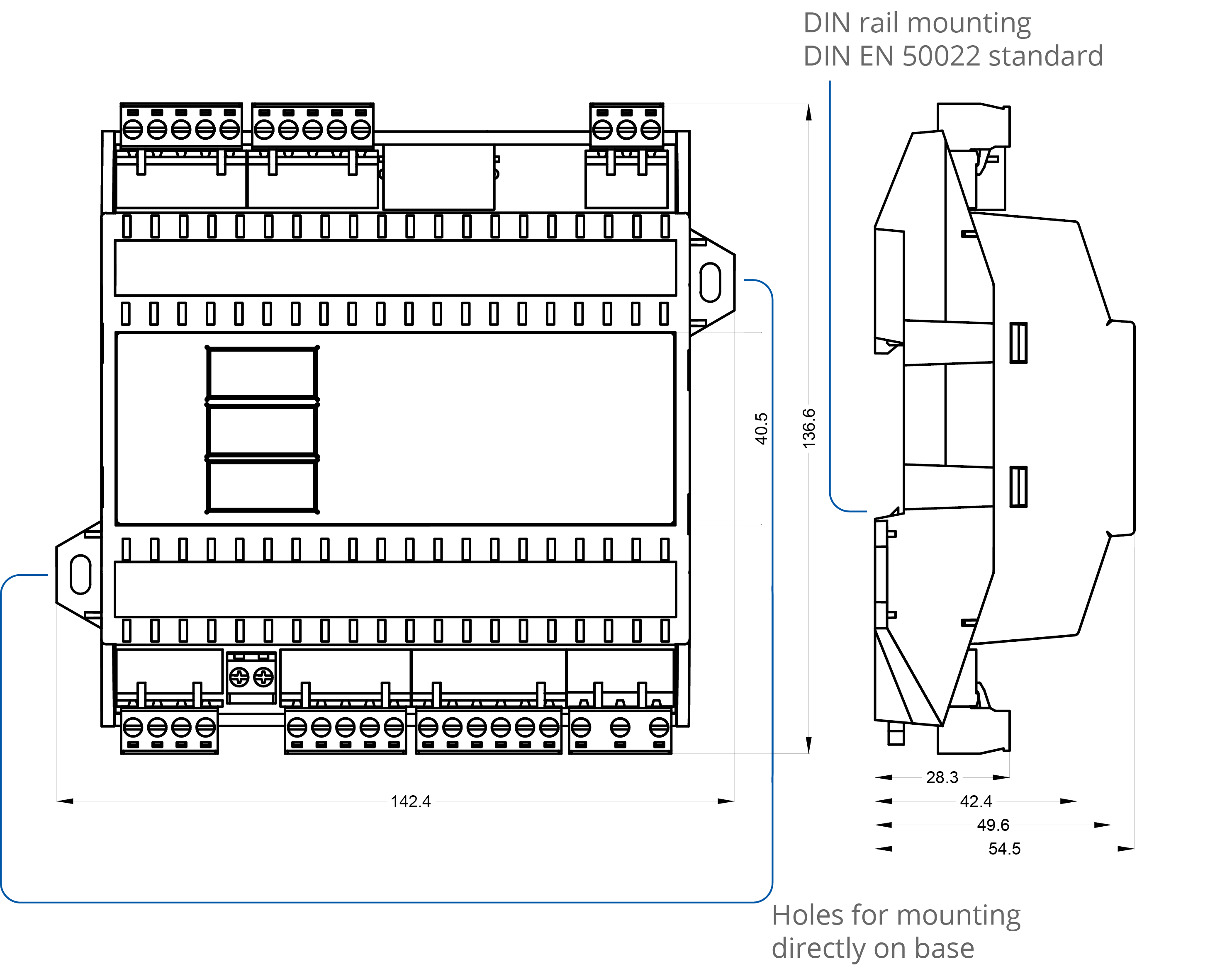

The controller dimensions and mounting details are presented on the figure 1. There are no additional requirements for controller’s orientation and placement.

FCU dimensions and mounting

Technical Specification

For detailed technical specification, see the FCU Hardware manual.
