Simple Panel Connection

The iSMA-B-SP Simple Panel is a device designed to work with room temperature controllers. The device is fully passive and does not require any power supply. The panel consists of the following parts:

  • temperature sensor (10K3A1);

  • resistance potentiometer (0-10 kΩ);

  • push button (NO, max. 50 mA);

  • LED diode (blue, max. 5 mA).

The iSMA-B-SP panel internal connection and the connection with the FCU controller are presented in the figures below.

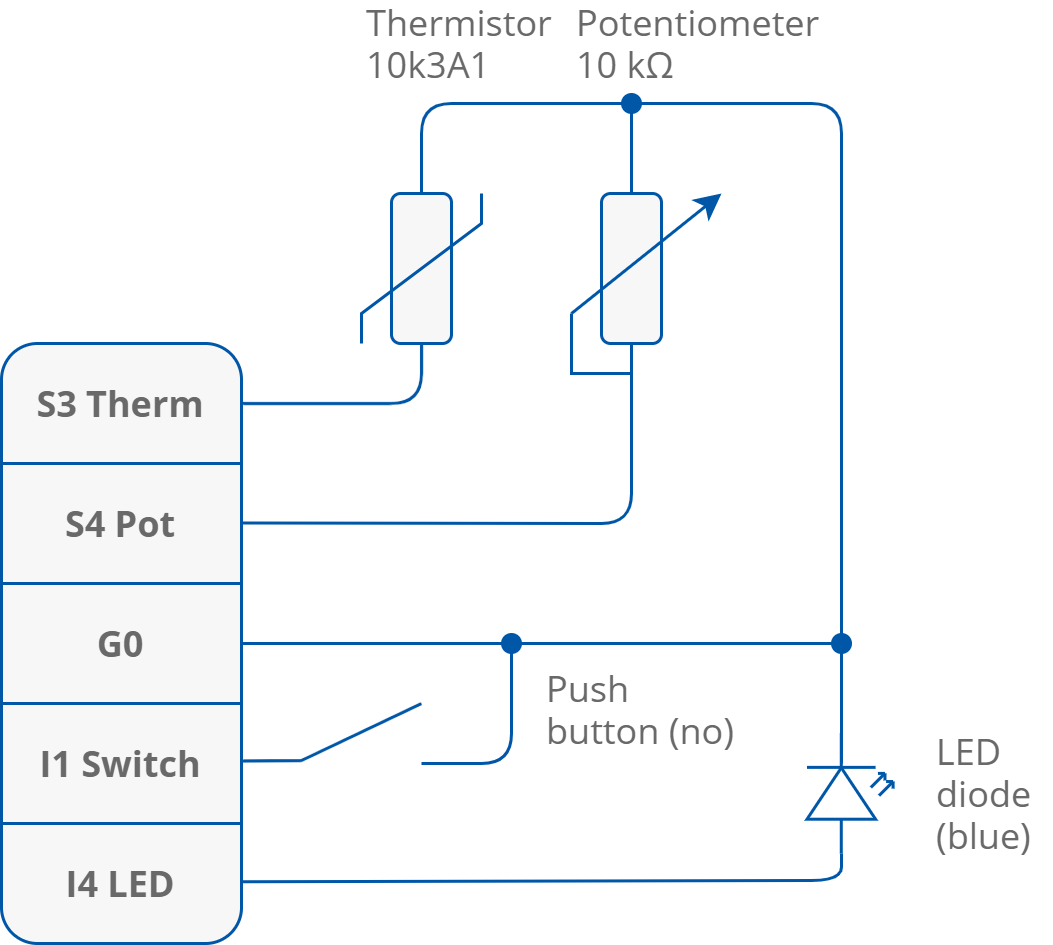

10 Diagram of internal connections of SP.png

Diagram of internal connections of the simple panel

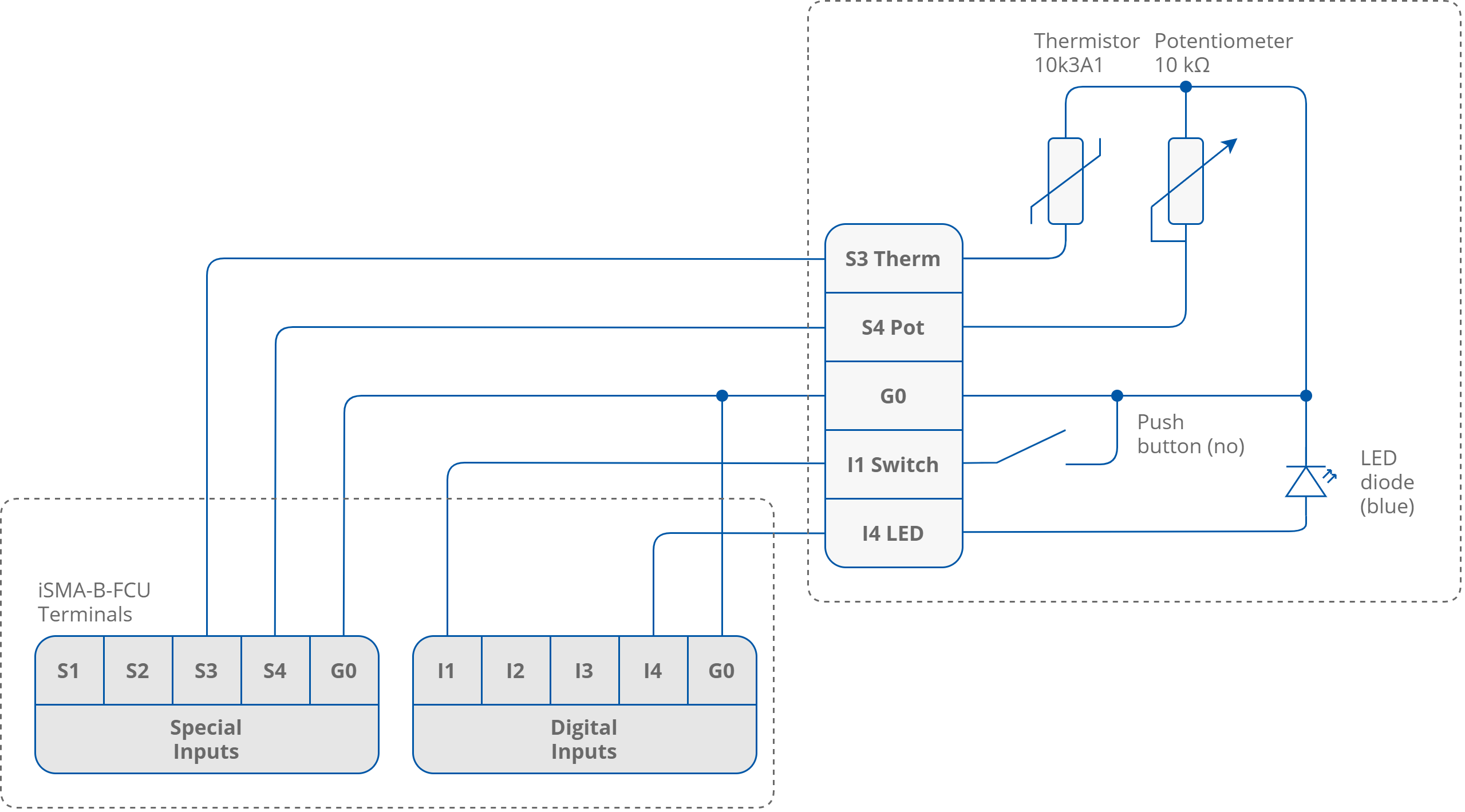

11 Connection diagram of FCU controller.png

Connection diagram of the iSMA-B-FCU controller
