Introduction
This user manual contains information about the visualization web server for the iSMA-B-AAC20 controllers.
The visualization web server allows to present basic information about an application controlled by the iSMA-B-AAC20 controllers. The web server is based on .html files and works together with an existing built-in web server administrator platform. Visualizations can be customized and must be loaded separately.
The visualization web server is composed of a main page and up to four subpages intended for time schedules control.
Main page of the visualization web server
Revision History
|
Rev. |
Date |
Description |
|---|---|---|
|
1.0 |
28 Feb 2022 |
First edition |
Revision history
Overview

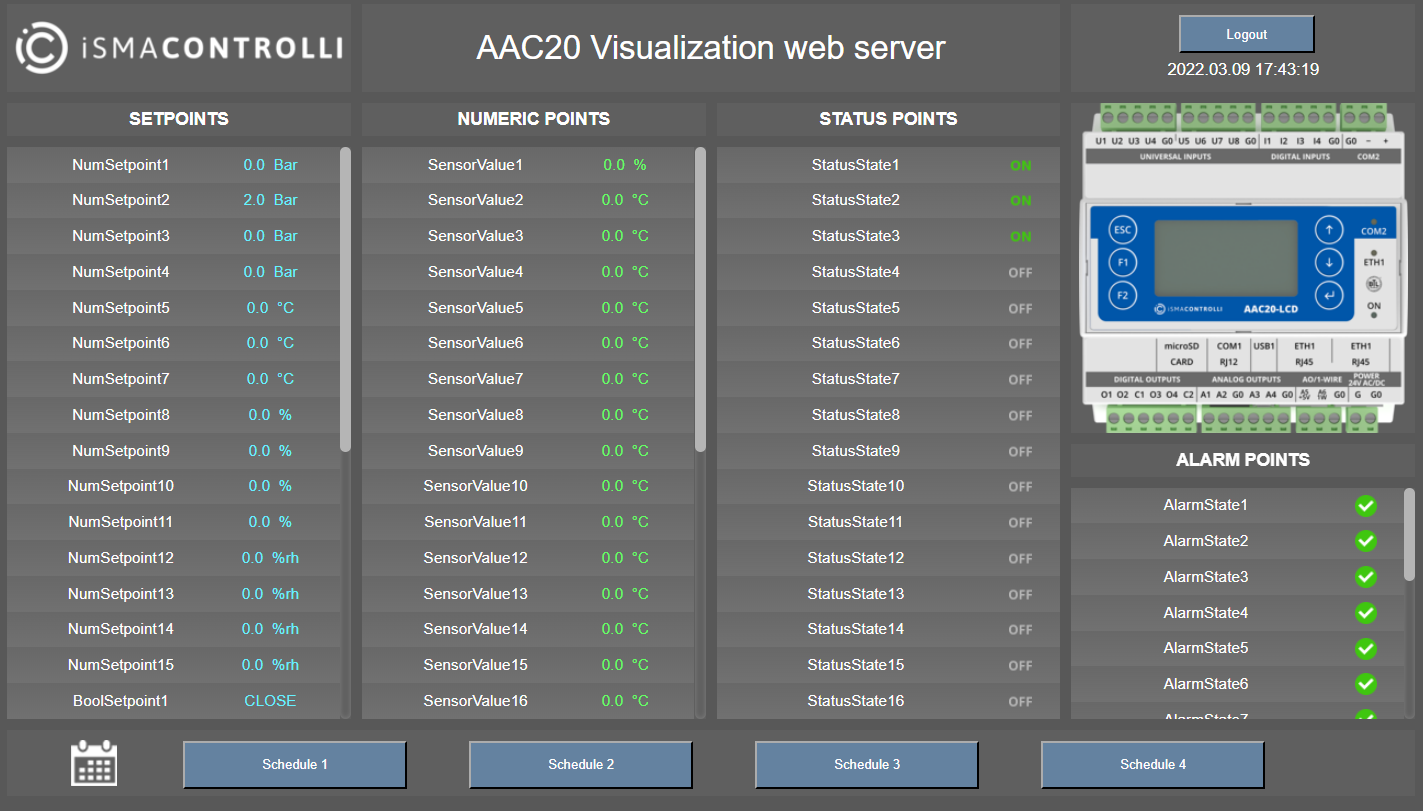

On the default main page there are 4 containers, which can be fully adjusted with the Visualization_configurator.xlsm file:
-
setpoints;
-
numeric points;
-
status points;
-
alarm points.
There are also 4 buttons opening additional subpages, responsible for schedules, which types (numeric or Boolean) can also be configured using the iSMA Tool software.

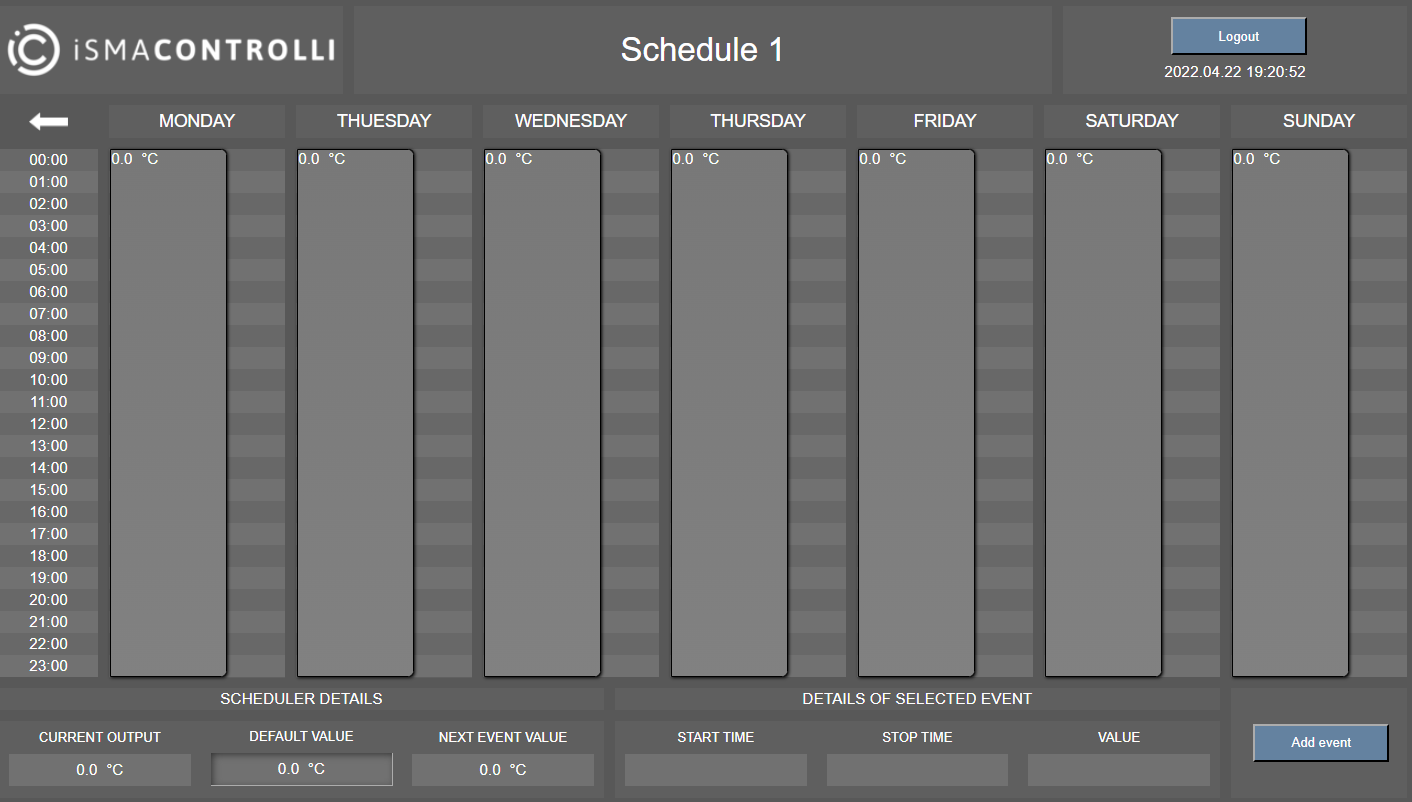

Schedule view of visualization
