UIVoltage

The UIVoltage component allows to control the universal input in voltage mode. The component receives values from 0 to 10 V.

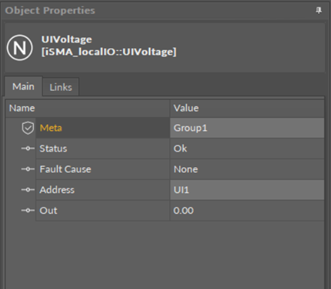

UIVoltage component

Slots

The UIVoltage component has the following slots:

• Status: shows the component’s status;
  • Available information: OK (the component is working properly), Fault (the component is disabled);
• Fault Cause: shows the reason of the Fault status;
• Address: allows setting an address of a physical input of the device; once the component has been added to the folder, the slot's default value is 1—for the component to operate properly, the unique address value must be set in this slot.
  • Available settings: UI1-8.
• Out: a real value read from the universal input of the device.
