UIResistance

The UIResistance component allows to control the universal input in resistance mode.

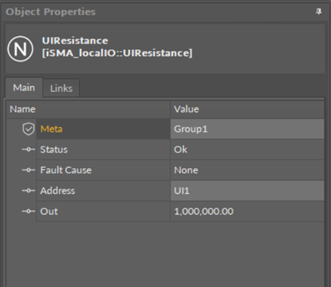

UIResistance component

Slots

The UIResistance component has the following slots:

  • Status: shows the component’s status;
    • Available information: OK (the component is working properly), Fault (the component is disabled);
  • Fault Cause: shows the reason of the Fault status;
  • Address: allows setting an address of a physical input of the device; once the component has been added to the folder, the slot's default value is 1—for the component to operate properly, the unique address value must be set in this slot.
    • Available settings: UI1-8.
  • Out: a real value read from the universal input of the device.
