DO

The DO component allows to control the digital output in dry contact mode.

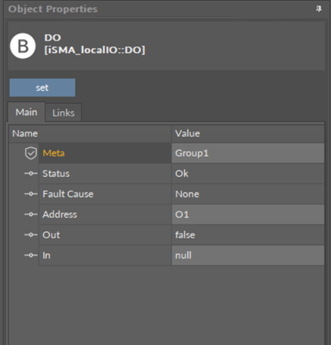

DO component

Slots

The DO component has the following slots:

  • Status: shows the component’s status;
    • Available information: OK (the component is working properly), Fault (the component is disabled);
  • Fault Cause: shows the reason of the Fault status;
  • Address: allows setting an address of a physical output of the device; once the component has been added to the folder, the slot's default value is 1—for the component to operate properly, the unique address value must be set in this slot.
    • Available settings: O1-4.
  • Out: a value transferred from the In slot and then to the physical output;
  • In: a value read from an application or network and then transferred to the Out slot.

Action

The DO component has one action available:

  • Set: allows to manually set the In slot value.
