DI

The DI component allows to control the digital input in the controller.

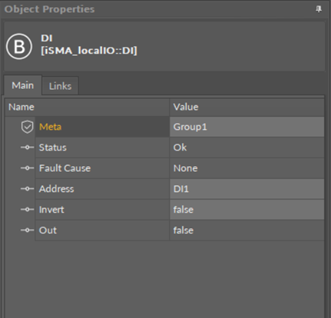

DI component

Slots

The DI component has the following slots:

  • Status: shows the component’s status;
    • Available information: OK (the component is working properly), Fault (the component is disabled);
  • Fault Cause: shows the reason of the Fault status;
  • Address: allows setting an address of a physical input of the device; once the component has been added to the folder, the slot's default value is 1—for the component to operate properly, the unique address value must be set in this slot.
    • Available settings: DI1-4.
  • Invert: a Boolean slot allowing to invert the value read from the digital input of the device;
  • Out: a real value read from the digital input of the device.
