AOVoltage

The AOVoltage component allows to control the analog output in voltage mode. The analog output in voltage mode transmits values from 0 to 10 V, which controls 0-100% of fan or pomp operation.

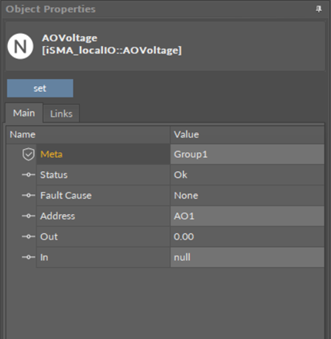

AOVoltage component

Slots

The AOVoltage component has the following slots:

  • Status: shows the component’s status;
    • Available information: OK (the component is working properly), Fault (the component is disabled);
  • Fault Cause: shows the reason of the Fault status;
  • Address: allows setting an address of a physical output of the device; once the component has been added to the folder, the slot's default value is 1—for the component to operate properly, the unique address value must be set in this slot.
    • Available settings: AO1-6.
  • Out: a value transferred from the In slot and then to the physical output;
  • In: a value read from an application or network and then transferred to the Out slot (expressed in mV, range 0-10000 mV).

Action

The AOVoltage component has one action available:

  • Set: allows to manually set the In slot value.
