AODigital

The AODigital component allows to control the analog output in dry contact mode.

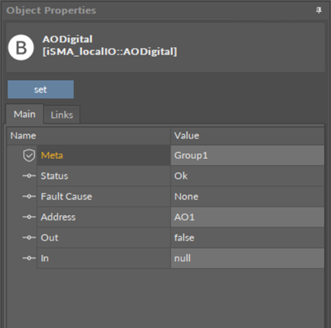

AODigital component

Slots

The AODigital component has the following slots:

• Status: shows the component’s status;
  • Available information: OK (the component is working properly), Fault (the component is disabled);
• Fault Cause: shows the reason of the Fault status;
• Address: allows setting an address of a physical output of the device; once the component has been added to the folder, the slot's default value is 1—for the component to operate properly, the unique address value must be set in this slot;
  • Available settings: AO1-6.
• Out: a value transferred from the In slot and then to the physical output;
• In: a value read from an application or network and then transferred to the Out slot.

Action

The AODigital component has one action available:

• Set: allows to manually set the In slot value.
