RegisterBitsPoint

The RegisterBitsPoint component is responsible for reading values from a bit in a specified register in the device. The component has to be placed in the ModbusTCPSlaveNetwork component.

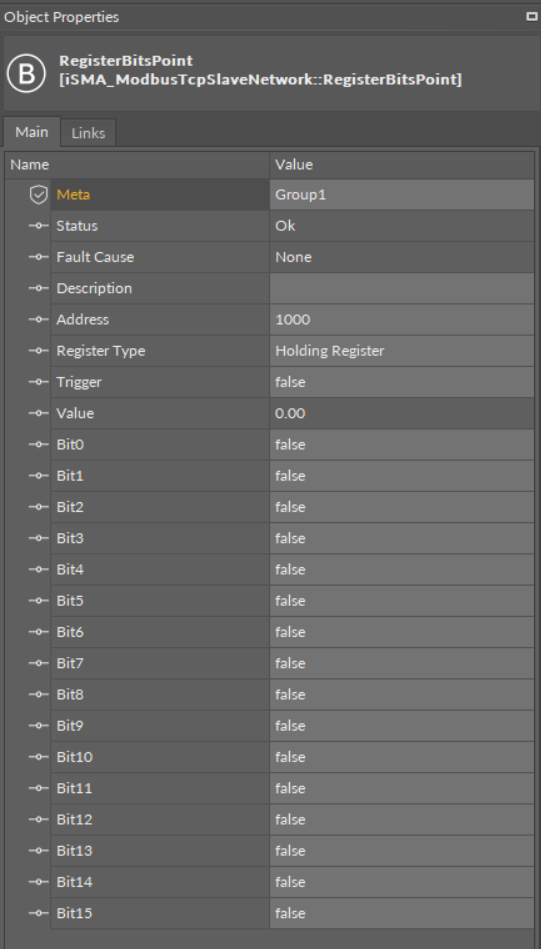

RegisterBitsPoint component

Slots

The RegisterBitsPoint component has the following slots:

• Status: shows the point’s status;
• Fault Cause: shows the fault cause description;
• Description: point's description label;
• Address: allows to set the register address, which the values will be read from;
• Register Type: defines a type of the addressed register;
• Trigger: invokes a reading action;
• Value: shows a decimal representation of the Boolean bits values;
• Bit0-Bit15: Boolean value of each of the register's bits.
