iSMA-B-AAC20 Hardware User Manual
Introduction
The iSMA-B-AAC20 is a universal controller with built-in different types of I/Os, which operates based on the Sedona framework environment. Using a specific set of inputs and outputs (8 UI, 4 DI, 6 AO, and 4 DO) allows to use the device in different applications. The controller provides control, data logging, alarming, scheduling, integration.
To allow IP connectivity there are 2 Ethernet ports, which operate as two independent ports. A built-in RS485 port can be used to expand the number of I/Os by connecting the multiprotocol I/O modules (MINI, MIX, or MAX series) or to integrate with other subsystems.
The iSMA-B-AAC20 controller communicates in BACnet and Modbus protocols, and additionally can come with M-Bus or DALI extensions.
The unique option in iSMA-B-AAC20 controllers is an LCD display, which allows for basic service of the controller.

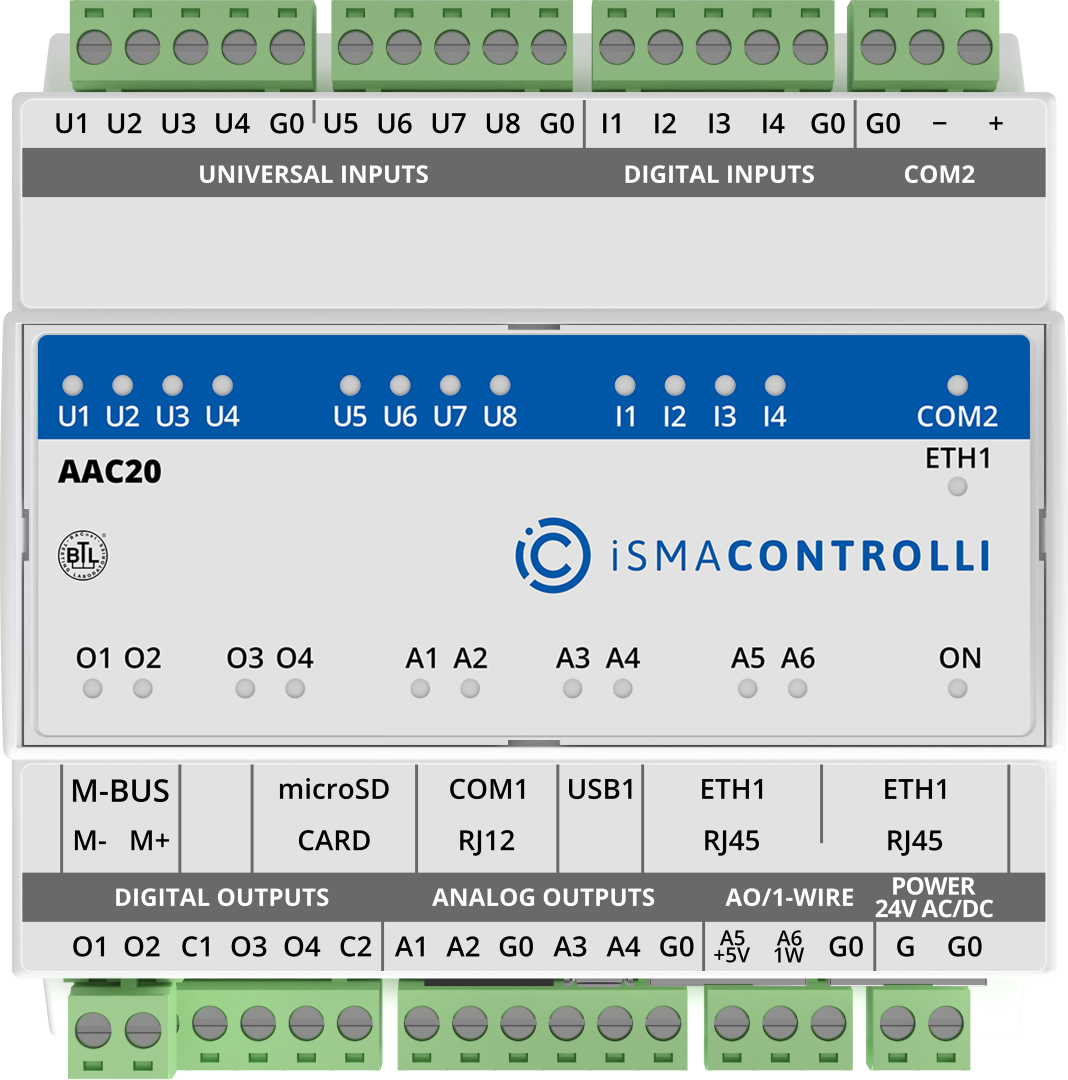

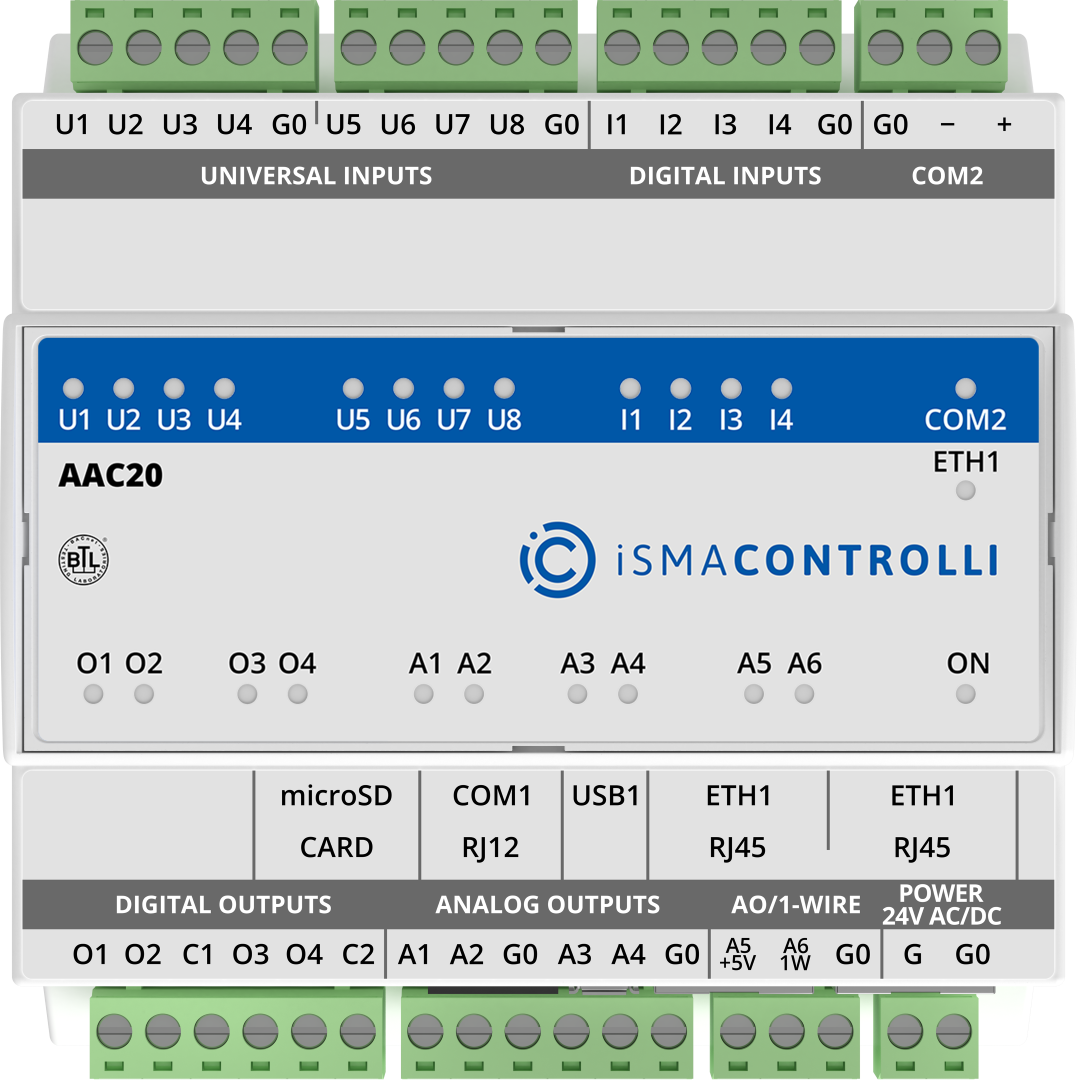

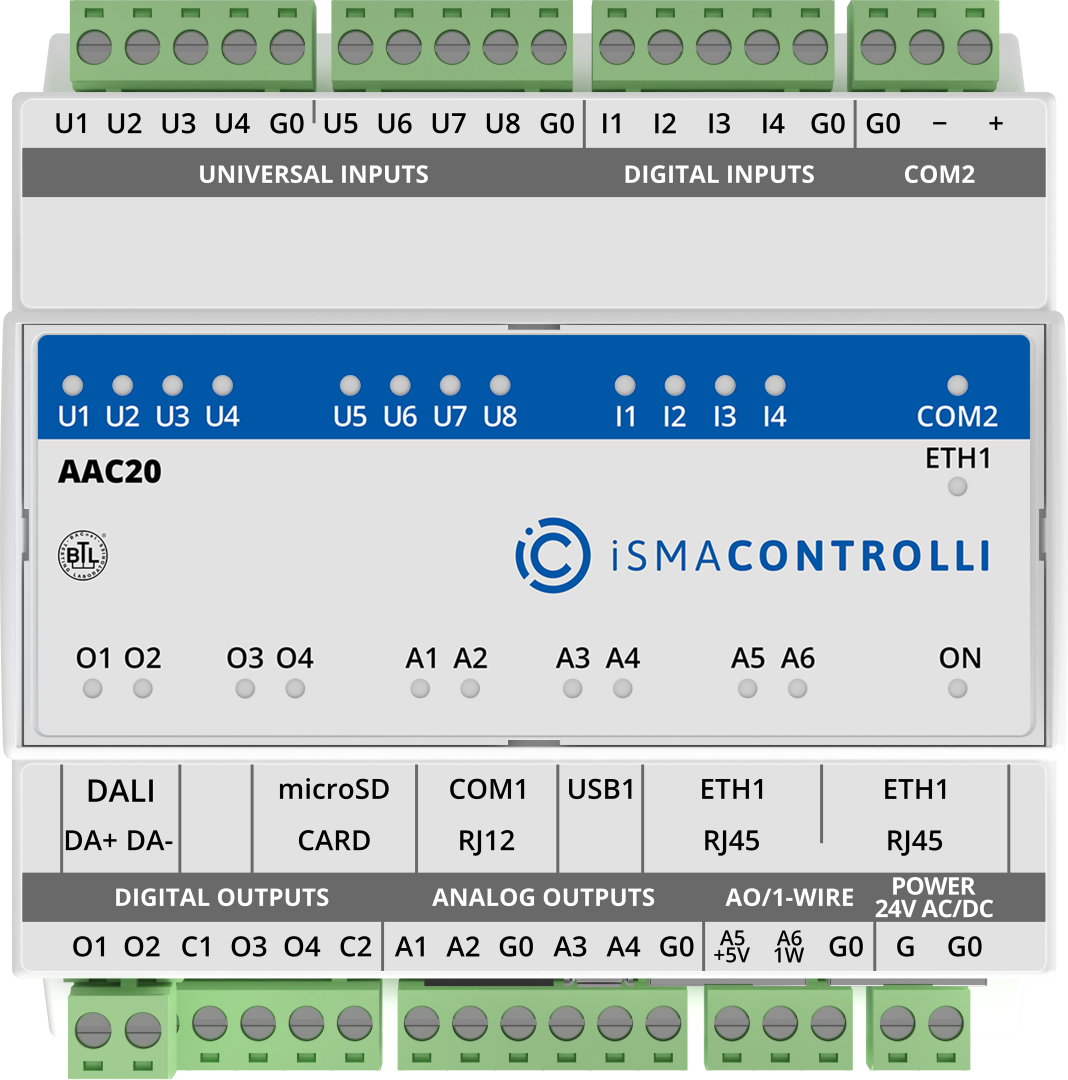

 iSMA-B-AAC20 |  iSMA-B-AAC20-D |  iSMA-B-AAC20-M |

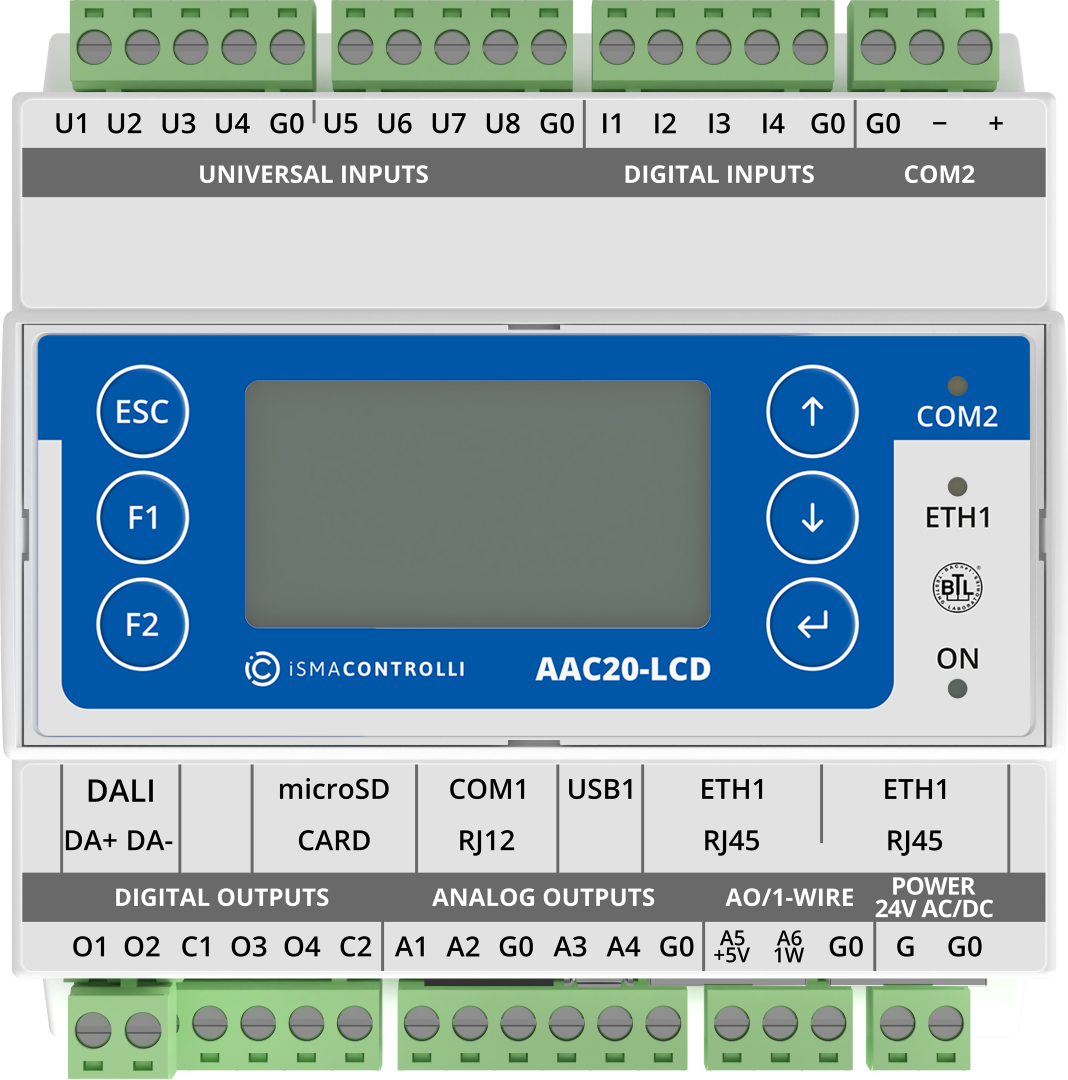

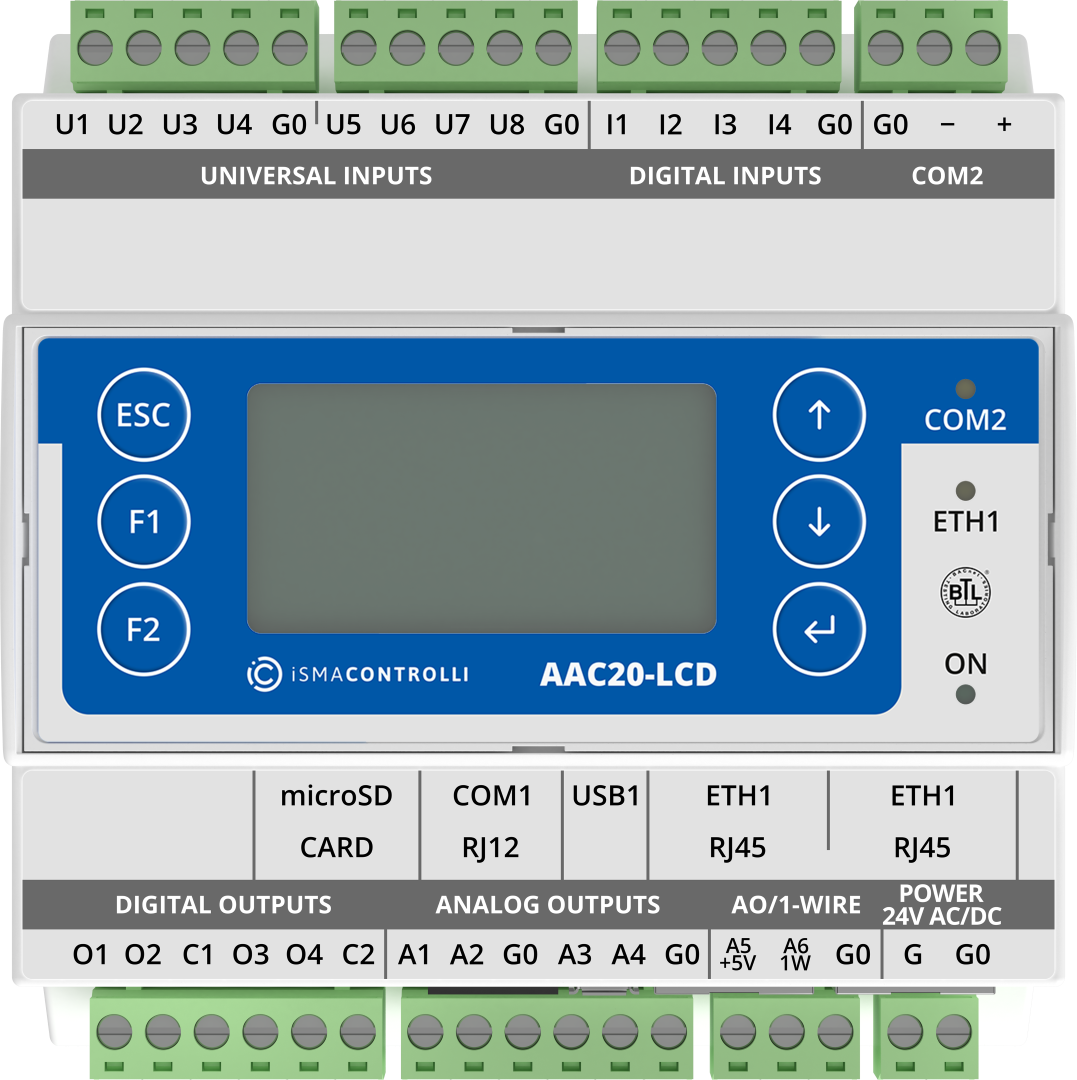

 iSMA-B-AAC20-LCD |  iSMA-B-AAC20-LCD-D |  iSMA-B-AAC20-LCD-M |
Revision History
Rev. | Date | Description |
|---|---|---|
1.2 | 15 Mar 2024 | Updated UI temperature input type information |
1.1 | 6 Jun 2023 | Updated MAX modules references |
1.0 | 28 Feb 2022 | First edition |
