Xor

The XOR component performs a logical XOR on all valid inputs and writes the result to the Out property. The first table below shows the XOR component truth table if using all four inputs. The second table below shows the XOR component truth table if using two inputs (typical).

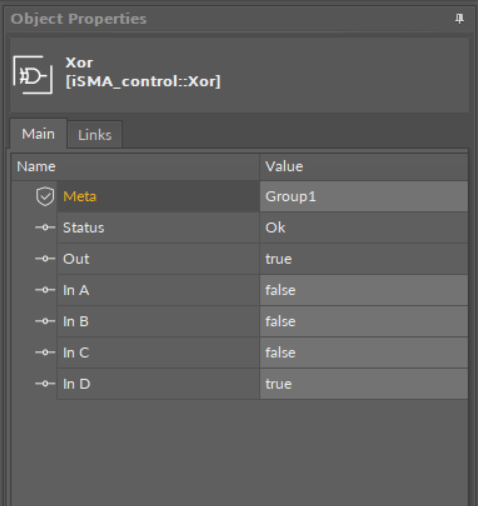

Xor component

Slots

The Xor component has the following slots:

Status: shows the component's status;
Out: the output value with the outcome of the xor operation;
InA-InD: the input value.

In A	In B	Out
False	False	False
False	True	True
True	False	True
True	True	False

Xor component truth table (2 inputs)

In A	In B	In C	In D	Out
False	False	False	False	False
False	False	False	True	True
False	False	True	False	True
False	False	True	True	False
False	True	False	False	True
False	True	False	True	False
False	True	True	False	False
False	True	True	True	True
True	False	False	False	True
True	False	False	True	False
True	False	True	False	False
True	False	True	True	True
True	True	False	False	False
True	True	False	True	True
True	True	True	False	True
True	True	True	True	False

Xor component truth table (4 inputs)
