The ReheatSequence component provides a linear sequence of up to 4 loads based on configurable thresholds. The component’s algorithm sets an output to true if the In value is greater than a corresponding threshold, and returns the ouput to false if the In value is less than the threshold minus the hysteresis value.

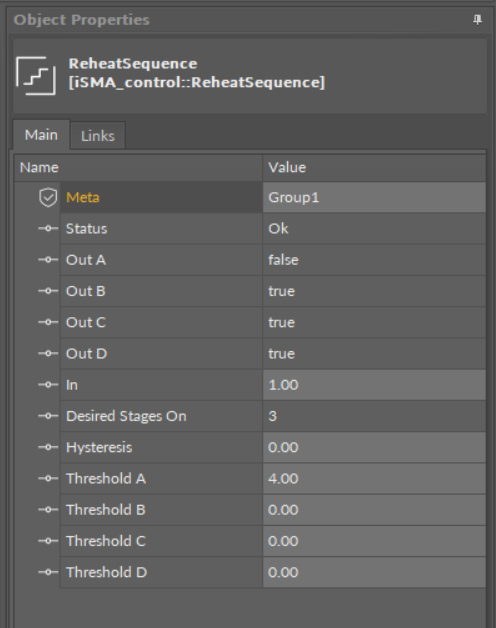

ReheatSequence component


The ReheatSequence component has the following slots:

  • OutA-OutD: four output slots;
  • In: controlled variable;
  • Desired Stages On: number of currently turned on outputs;
  • Hysteresis: s hysteresis value, which—if exceeded—allows to turn an output off;
  • ThresholdA-ThresholdD: four threshold values enabling to turn a respective output on.
