The Ramp component provides a numeric Out with a linear ramping output. Slots define the Period, Amplitude, and Offset.

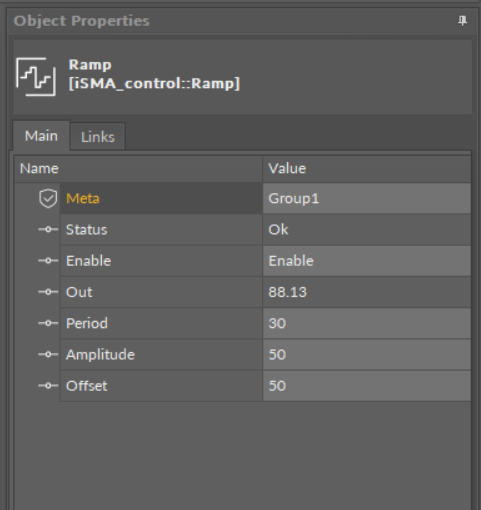

Ramp component


The Ramp component has the following slots:

  • Status: shows the component's status;
  • Enable: enables or disables the component;
  • Out: the output value calculated based on the set parameters;
  • Period: allows to set the length of one cycle of the component's function;
  • Amplitude: allows to set an amplitude for the output values function;
  • Offset: allows to set an offset for the output values function.
