Multivibrator

The Multivibrator component provides an oscillating binary pulse output (Boolean) with a period configurable from 1 s and a duty cycle configurable from 0 to 100.

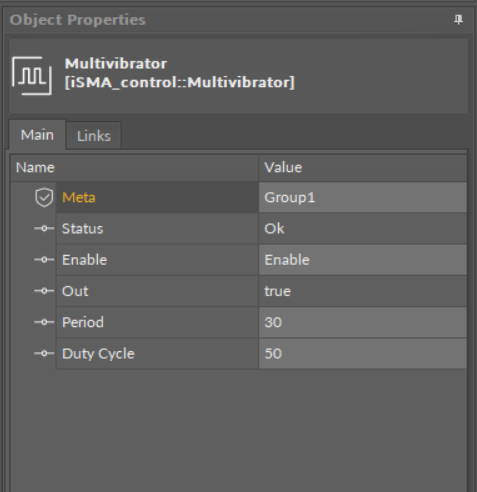

Multivibrator component

Slots

The Multivibrator component has the following slots:

• Status: shows the component's status;
• Enable: enables or disables the component;
• Out: the binary pulse output;
• Period: sets the period time in seconds;
• Duty Cycle: sets the duty cycle of the component.
