LogicExpr

LogicExpr is a binary logic object, where various logic operations are being performed on one/two Boolean inputs based on the operator.

• Out:= (InA & InB)        if operator == 0 (And)
• Out:= (InA | InB)          if operator == 1 (Or)
• Out:= (InA ^ InB)         if operator == 2 (Xor)
• Out:= !InA                    if operator == 3 (Not)
• Out:= !(InA & InB)       if operator == 4 (Nand)
• Out: =! (InA | InB)        if operator == 5 (Nor)

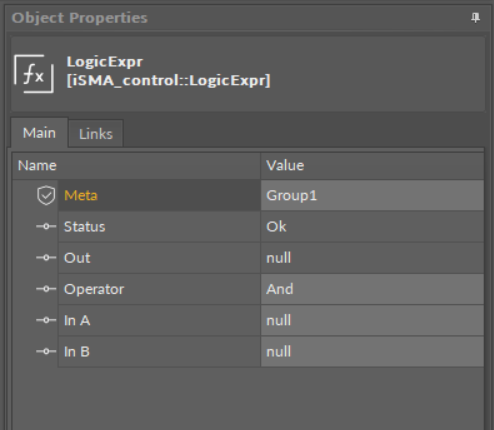

LogicExpr component
