The CompareExpr component is a comparator object, where various comparator operations are being performed on two float inputs, based on the operator.

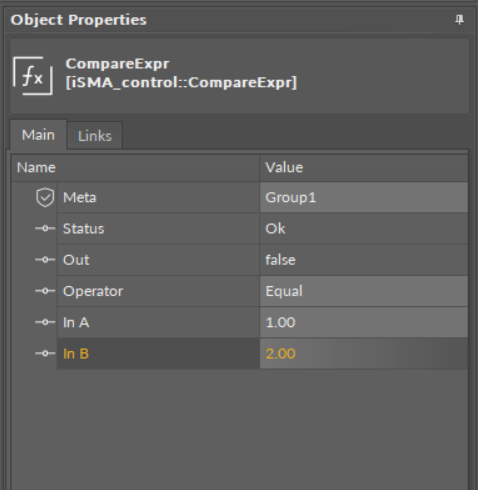

CompareExpr component


The CompareExpr component has the following slots:

  • Status: shows the component's status;
  • Out: the input value converted to the float;
  • Operator: the value determining the logical operation for the Out value;
  • InA-InB: two input values.
OperatorOut Value
0 (Equal)out:= (inA == inB)
1 (NotEqual)out:= (inA != inB)
2 (GreaterThan)out:= (inA >  inB)
3 (GreaterThanEqual)out:= (inA >= inB)
4 (LessThan)out:= (inA <  inB)
5 (LessThanEqual)out:= (inA <= inB)
CompareExpr component's output value depending on the operator
