And

The And component performs a logical AND on all inputs and writes the result to the out property. The first table below shows the AND object truth table if using two inputs. The second table below shows the AND object truth table if using all four inputs.

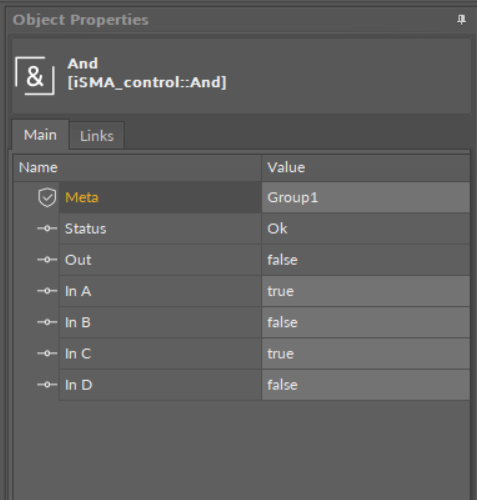

And component

Slots

The And component has the following slots:

  • Status: shows the component's status;
  • Out: the output slot with the outcome of the and operation;
  • InA-InD: input slots.

In A

In B

Out

False

False

False

False

True

False

True

False

False

True

True

True

And component truth table (2 inputs)


In A

In B

In C

In D

Out

False

False

False

False

False

False

False

False

True

False

False

False

True

False

False

False

False

True

True

False

False

True

False

False

False

False

True

False

True

False

False

True

True

False

False

False

True

True

True

False

True

False

False

False

False

True

False

False

True

False

True

False

True

False

False

True

False

True

True

False

True

True

False

False

False

True

True

False

True

False

True

True

True

False

False

True

True

True

True

True

And component truth table (4 inputs)
