Sunblind

The Sunblind component has been created to allow the control of the sunblind with one function block. It best suits simple projects, where only simple up/down manual or BMS control is required. There is a dedicated slot for monitoring the current position of the sunblind.

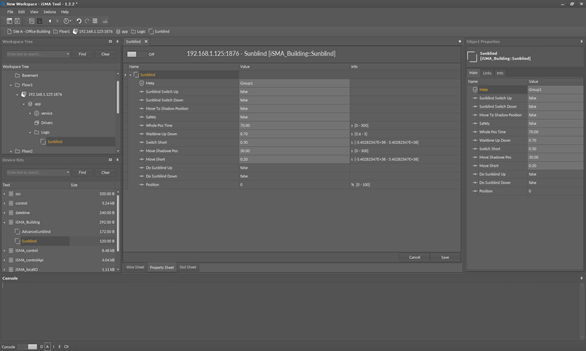

Sunblind component

The Sunblind component has the following configuration slots:

• Sunblind Switch Up: the Boolean input dedicated for moving the sunblind up;
• Sunblind Switch Down: the Boolean input dedicated for moving the sunblind down;
• Move To Shadow Position: the Boolean input dedicated for moving the sunblind to shadow position (protection from sunlight);
• Safety: the Boolean input dedicated for moving the sunblind completely up (protection from strong wind);
• Whole Pos Time: the time needed for the sunblind motor to make a complete opening/closing of the sunblind (0-300 s);
• Waittime Up Down: the delay between changing the direction of the sunblind (0,6-3 s);
• Switch Short: the time defining a short press of the switch, which results in changing the slats position;
• Move Shadow Pos: the time needed for the sunblind motor to set the sunblind to shadow position (0-300 s);
• Move Short: the time defining the short moving of the sunblind in case if the impulse was shorter than the Switch Short. If the motor is moving, such impulse results in stopping the sunblind motor;
• Do Sunblind Up: the Boolean output dedicated for moving the sunblind up;
• Do Sunblind Down: the Boolean output dedicated for moving the sunblind down;
• Position: monitors the position of the sunblind (0-100%).
