BACnet Network

The BACnet Network is the main component that provides the BACnet protocol in the iSMA-B-AAC20 controller, and it should be placed under the Drivers folder.

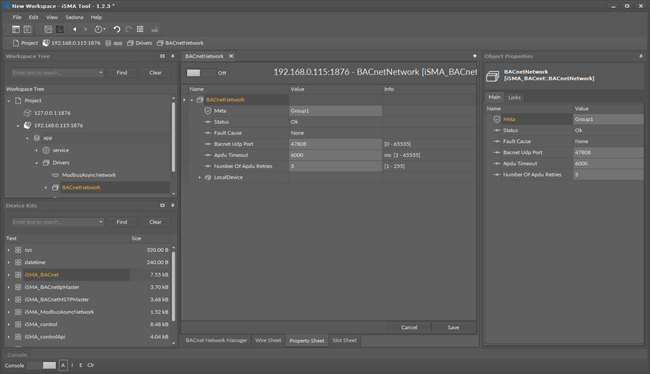

BACnet Network component

The BACnet Network component has the following slots:

  • Status: Component current status;
  • Fault Cause: Fault cause description;
  • Bacnet Udp Port: Udp Port number in IP network (default 47808);
  • Apdu Timeout: Time during which other BACnet devices should response to the AAC20 request (default 6000 ms);
  • Number Of Apdu Retries: Read/write objects retries number.

WARNING! All other BACnet Network components. such as Local Device, Remote IP Master, Remote MS/TP Master must be placed under this component.
